NetzerIO Project

---

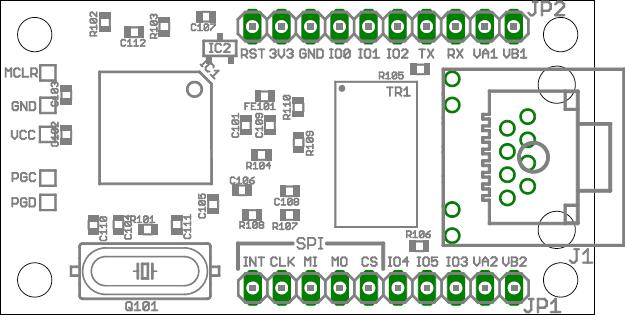

Detailed Description

These modules handle serial communication with peripherals connected via UART or SPI.

Furthermore digital IOs are handled by the NetzerIO project.

Files
file	gpio.c
	Implementation of gpio access.
file	gpio.h
	API for GPIO (digital IO) access.
file	i2c.c
	Implementation of the I2C communication stuff.
file	i2c.h
	API for serial communication via I2C.
file	io.c
	Implementation of the common io application stuff.
file	projectdefs.h
	Some project related defines and typedefs for the NetzerIO project.
file	projectIRQ.inc
	This file extends the low priority interrupt hook to call some IO routines (for example filter timer and serial stubs).
file	projectIRQ.asm
	This file extends low and high priority interrupts in a very efficient and small footprint manner.
file	serial.c
	Implementation of the serial communication stuff.
file	serial.h
	API for serial communication via UART or SPI.
file	webio.c
	Implementation of the web io stuff.
Defines
#define	GPIOWriteSPIChipSelect(Value)   LATFbits.LATF7 = Value
	In SPI mode the SPI_CS pin can be quickly written with this function.
#define	GPIOWriteSPIInt(Value)   LATCbits.LATC2 = Value
	In SPI slave mode the int pin can be quickly written with this function.
#define	GPIOWriteSPIBusy(Value)   LATAbits.LATA3 = Value
	In SPI slave mode the busy pin can be quickly written with this function.
#define	GPIOReadSPIRegister()   PORTBbits.RB1
	In SPI slave mode the register pin can be quickly read with this function.
#define	GPIOWriteSPINetzerDataValid(Value)   LATAbits.LATA2 = Value
	In SPI slave mode the data valid pin can be quickly written with this function.
#define	GPIOReadSPIMasterWrite()   PORTDbits.RD1
	In SPI slave mode the master data valid can be quickly read with this function.
#define	GPIOReadSPIClock()   PORTCbits.RC3
	In SPI mode the SPI_INT pin can be quickly read with this function.
Enumerations
enum	PortType_t {   PT_DIG_INPUT = 0, PT_DIG_OUTPUT, PT_ANALOG_INPUT, PT_PWM,   PT_IMPULSE }
	A GPIO channel can be configured as one of this types. More...
enum	TimerPrescaler_t { TMR_PRESCALER1 = 0, TMR_PRESCALER2, TMR_PRESCALER4, TMR_PRESCALER8 }
	Use this enumerator to configure prescaler values for impulse generation. More...
enum	PWMFrequencies_t { PF_2500_HZ = 0, PF_10000_HZ, PF_40000_HZ }
	Use this enumerator to configure prescaler values for PWM generation. More...
enum	ImpulseMode_t { IPM_SINGLE = 0, IPM_TRIGGERED, IPM_CONTINUOUS }
	Modes for impulse generation. More...
enum	GPIOServerConnection_t { GPIO_SERVER_NOT_RUNNING = 0, GPIO_SERVER_RUNNING, GPIO_SERVER_CONNECTED }
	This enumerator is used to express the GPIO server state. More...
enum	EdgeCounterMode_t { EC_DISABLED = 0, EC_DECREMENTS, EC_INCREMENTS }
	Modes of the edge trigger counter. More...
enum	EdgeTriggerMode_t { ET_DISABLED = 0, ET_FALLING, ET_RISING }
	Modes of the edge trigger interrupt. More...
enum	EdgeFilterMode_t {   EF_DISABLED = 0, EF_1_MS, EF_10_MS, EF_100_MS,   EF_250_MS }
	Filter mode for the edge trigger interrupt. More...
enum	EventMode_t { EM_DISABLED = 0, EM_ON_FALLING_EDGES, EM_ON_RISING_EDGES, EM_ON_ALL_EDGES }
	Modes for the GPIO event service. More...
enum	GPIORadix_t { RADIX_IS_HEXADECIMAL = 0, RADIX_IS_DECIMAL }
	Display radix for numbers on webpages and GPIO server. More...
Functions
void	GPIOInit (SerialMode_t Mode)
	Initializes the GPIO module in the requested mode.
void	GPIOResetToFactory (void)
	Resets the GPIO module EEPROM section to well known start parameters.
WORD	GPIOGetTCPPort (BOOL bPersistent)
	Delivers the current configured TCP port of the GPIO server.
void	GPIOSetTCPPortPersistent (WORD Port)
	Configures a new TCP port for the GPIO server.
BOOL	GPIOInitTask (void)
	After initializing network and application stuff the application should call this function to prepare task members needed for proper GPIO task operation.
void	GPIOTask (void)
	Call this function periodically from main application to execute GPIO module tasks.
void	GPIOStopTask (void)
	On network errors or shut down events these function should be called by the main application to proper stop the GPIO tasks (i.e disconnecting a connected client).
BOOL	bGPIOCheckForStoppedTask (void)
	Before shutting down the application should poll for valid GPIO task shutdown.
PortType_t	GPIOGetPortType (BYTE GPIOChannel)
	Delivers the current port configuration of a GPIO pin.
BOOL	GPIOIsPortOverwritten (BYTE GPIOChannel)
	Delivers if the port is currently overwritten by an alternative pin (i.e serial).
void	GPIOSetPortValue (BYTE Channel, BOOL Value)
	This function sets the state for a single IO pin.
BOOL	GPIOGetPinValue (BYTE GPIOChannel)
	This function reads the state from a single IO pin.
GPIOServerConnection_t	GPIOGetServerState (void)
	This function delivers the current state of the GPIO server.
DWORD	GPIOGetConnectedIP (void)
	Delivers the IP of a client who is connected to GPIO server.
void	GPIOResetEdgeCounter (BYTE Channel)
	Thread safe reset the edge counter for the given channel.
BOOL	GPIOServerIsActivated (void)
	Getter for activated GPIO server.
void	GPIOActivateServerPersistent (BOOL Activate)
	Setter for GPIO server state.
ROM BYTE *	GPIOGetPortName (BYTE Channel)
	Delivers the port alias name for the given channel.
EventMode_t	GPIOGetEventMode (BYTE Channel)
	Delivers the GPIO server event mode of a GPIO channel.
void	GPIOSetEventMode (BYTE Channel, EventMode_t Mode)
	Sets the GPIO server event mode of a GPIO channel.
void	GPIOSetPortType (BYTE Channel, PortType_t PortType)
	Sets the port mode of a GPIO channel.
BOOL	GPIOGetStartupValue (BYTE Channel)
	Delivers the startup value for a given channel.
void	GPIOSetStartupValue (BYTE Channel, BOOL Value)
	Configures the startup value for binary output configured values.
void	GPIOFlushToEEPROM (void)
	All prior changed values are persistently written to EEPROM.
void	GPIOConfigurePort (BYTE Channel)
	Call this function for a given channel to reconfigure the port and all other peripherals associated with the new port function.
BOOL	GPIOIsTypeSupportedByPort (BYTE Channel, PortType_t PortType)
	Determines programmatically if a given port supports a requested configuration.
BOOL	GPIOGetImpulseLogic (BYTE Channel)
	Delivers the configured logic for an impulse channel.
TimerPrescaler_t	GPIOGetImpulsePrescaler (void)
	Delivers the configured prescaler for all impulse channel.
WORD	GPIOGetStartImpulseWidth (BYTE Channel)
	Delivers the configured startup value for an impulse channel.
WORD	GPIOGetCurrentImpulseWidth (BYTE Channel)
	Delivers the current value for an impulse channel.
void	GPIOSetImpulseLogic (BYTE Channel, BOOL Logic)
	Configures the logic for an impulse channel.
void	GPIOSetImpulsePrescaler (TimerPrescaler_t Prescaler)
	Configures the prescaler for all impulse channel.
void	GPIOSetStartupImpulseWidth (BYTE Channel, WORD ImpulseWidth)
	Configures the startup value for an impulse channel.
void	GPIOSetCurrentImpulseWidth (BYTE Channel, WORD ImpulseWidth)
	Sets the value for an impulse or pwm channel.
EdgeTriggerMode_t	GPIOGetEdgeTriggerMode (BYTE Channel)
	Delivers the current mode of the edge trigger for a given channel.
EdgeFilterMode_t	GPIOGetEdgeFilterMode (BYTE Channel)
	Delivers the current filter mode of the edge trigger for a given channel.
EdgeCounterMode_t	GPIOGetEdgeCounterMode (BYTE Channel)
	Delivers the current counter mode of the edge trigger for a given channel.
DWORD	GPIOGetEdgeCounter (BYTE Channel)
	Delivers the current edge counter value.
void	GPIOSetEdgeTriggerMode (BYTE Channel, EdgeTriggerMode_t Mode)
	Configures a new edge trigger mode for a given channel.
void	GPIOSetEdgeFilterMode (BYTE Channel, EdgeFilterMode_t Mode)
	Configures a new edge filter mode for a given channel.
void	GPIOSetEdgeCounterMode (BYTE Channel, EdgeCounterMode_t Mode)
	Configures a new edge counter mode for a given channel.
void	GPIOSetAllPinValues (WORD NewValue)
	Use this function to write to all pins at once.
void	GPIOSetPWMLogic (BYTE Channel, BOOL Value)
	Configures the logic for a pwm channel.
void	GPIOSetPWMFrequency (PWMFrequencies_t Value)
	Configures the frequency for all pwm channel.
void	GPIOSetPWMStartDuty (BYTE Channel, WORD Value)
	Configures the startup value of a pwm channel.
BOOL	GPIOGetPWMLogic (BYTE Channel)
	Delivers the configured logic for a pwm channel.
PWMFrequencies_t	GPIOGetPWMFrequency (void)
	Delivers the configured frequency for all pwm channel.
WORD	GPIOGetPWMStartDuty (BYTE Channel)
	Delivers the configured startup value for a pwm channel.
ImpulseMode_t	GPIOGetImpulseMode (void)
	Delivers the configured mode for all impulse channel.
void	GPIOSetImpulseMode (ImpulseMode_t Mode)
	Sets a new mode for all impulse channel.
void	GPIOReconfigurePeripherals (void)
	Call this function after reconfiguring a single or multiple ports with GPIOConfigurePort.
void	GPIOInitPeripherals (void)
	Call this function before reconfiguring a single or multiple ports with GPIOConfigurePort.
GPIORadix_t	GPIOGetRadix (void)
	Delivers the currently set radix for displaying values on the GPIO server and the web interface.
void	GPIOSetRadix (GPIORadix_t NewRadix)
	Sets a new radix for displaying values on the GPIO server and the web interface.
BYTE	GPIOGetRefresh (void)
	Delivers the currently set refresh rate for auto refreshing the GPIO web interface.
void	GPIOSetRefresh (BYTE Refresh)
	Sets a new refresh rate for auto refreshing the GPIO web interface.
BOOL	GPIOIsScriptActive (void)
	Delivers if javascript for the GPIO web interface is currently active.
void	GPIOActivateScript (BOOL Active)
	Activates or deactivates javascript for the GPIO web interface.
BOOL	GPIOIsAuthActive (void)
	Delivers if authentication for the GPIO server is currently active.
void	GPIOActivateAuth (BOOL Active)
	Activates or deactivates authentication for the GPIO server.

---

Define Documentation



#define GPIOReadSPIClock

(

)

PORTCbits.RC3

In SPI mode the SPI_INT pin can be quickly read with this function.

Return values:

	TRUE	The pin is high.
	FALSE	The pin is low.

#define GPIOWriteSPIBusy

(

Value

)

LATAbits.LATA3 = Value

In SPI slave mode the busy pin can be quickly written with this function.

Parameters:

Value

TRUE means on, FALSE means off.

#define GPIOWriteSPIChipSelect

(

Value

)

LATFbits.LATF7 = Value

In SPI mode the SPI_CS pin can be quickly written with this function.

Parameters:

Value

TRUE means on, FALSE means off.

#define GPIOWriteSPIInt

(

Value

)

LATCbits.LATC2 = Value

In SPI slave mode the int pin can be quickly written with this function.

Parameters:

Value

TRUE means on, FALSE means off.

#define GPIOWriteSPINetzerDataValid

(

Value

)

LATAbits.LATA2 = Value

In SPI slave mode the data valid pin can be quickly written with this function.

Parameters:

Value

TRUE means on, FALSE means off.

---

Enumeration Type Documentation

enum EdgeCounterMode_t

Modes of the edge trigger counter.

Enumerator:

EC_DISABLED	Edge counter is disabled.
EC_DECREMENTS	Counter decrements on edges.
EC_INCREMENTS	Counter increments on edges.

enum EdgeFilterMode_t

Filter mode for the edge trigger interrupt.

All edges after a detected edge are filtered out up to a given time after. It is possible to debounce switches for example.

Enumerator:

EF_DISABLED	No filter is enabled.
EF_1_MS	Filter all edges up to a millisecond after.
EF_10_MS	Filter all edges up to 10 milliseconds after.
EF_100_MS	Filter all edges up to 100 milliseconds after.
EF_250_MS	Filter all edges up to 250 milliseconds after.

enum EdgeTriggerMode_t

Modes of the edge trigger interrupt.

Enumerator:

ET_DISABLED	Edge trigger interrupt is disabled.
ET_FALLING	Edge trigger interrupt on falling edges.
ET_RISING	Edge trigger interrupt on rising edges.

enum EventMode_t

Modes for the GPIO event service.

On configured events a x=... message is sent to the client without request.

Enumerator:

EM_DISABLED	Event service is disabled.
EM_ON_FALLING_EDGES	Events are sent on falling edges.
EM_ON_RISING_EDGES	Events are sent on rising edges.
EM_ON_ALL_EDGES	Events are sent on both edges.

enum GPIORadix_t

Display radix for numbers on webpages and GPIO server.

Enumerator:

RADIX_IS_HEXADECIMAL	Radix is hexadecimal.
RADIX_IS_DECIMAL	Radix is decimal.

enum GPIOServerConnection_t

This enumerator is used to express the GPIO server state.

Enumerator:

GPIO_SERVER_NOT_RUNNING	Inactive server.
GPIO_SERVER_RUNNING	Running, waiting for client connect.
GPIO_SERVER_CONNECTED	Client connected, waiting for GPIO commands.

enum ImpulseMode_t

Modes for impulse generation.

Enumerator:

IPM_SINGLE	Single impulse generation on writing a new value.
IPM_TRIGGERED	Impulse generation on edge interrupt of IO0.
IPM_CONTINUOUS	Continuous impulse generation with 16 bit resolution.

enum PortType_t

A GPIO channel can be configured as one of this types.

Enumerator:

PT_DIG_INPUT	Configure pin as digital input.
PT_DIG_OUTPUT	Configure pin as digital output.
PT_ANALOG_INPUT	Pin is configured as analog input.
PT_PWM	Pin is configured as PWM output.
PT_IMPULSE	Pin is configured for impulse generation.

enum PWMFrequencies_t

Use this enumerator to configure prescaler values for PWM generation.

Enumerator:

PF_2500_HZ	2500 Hertz.
PF_10000_HZ	10000 Hertz.
PF_40000_HZ	40000 Hertz.

enum TimerPrescaler_t

Use this enumerator to configure prescaler values for impulse generation.

Enumerator:

TMR_PRESCALER1	Unit is 100 ns.
TMR_PRESCALER2	Unit is 200 ns.
TMR_PRESCALER4	Unit is 400 ns.
TMR_PRESCALER8	Unit is 800 ns.

---

Function Documentation

BOOL bGPIOCheckForStoppedTask

(

void

)

Before shutting down the application should poll for valid GPIO task shutdown.

Return values:

	TRUE	The task has successfully stopped.
	FALSE	Stopping the GPIO task is pending.

void GPIOActivateAuth

(

BOOL

Active

)

Activates or deactivates authentication for the GPIO server.

The new state is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

Active

TRUE enables authentication, FALSE disables it.

void GPIOActivateScript

(

BOOL

Active

)

Activates or deactivates javascript for the GPIO web interface.

The new javascript state is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

Active

TRUE activates javascript. FALSE deactivates javascript.

void GPIOActivateServerPersistent

(

BOOL

Activate

)

Setter for GPIO server state.

The server is deactivated or activated after restarting Netzer.

Parameters:

Activate

If TRUE, server is activated after restart. If FALSE, server is deactivated after restart.

void GPIOConfigurePort

(

BYTE

Channel

)

Call this function for a given channel to reconfigure the port and all other peripherals associated with the new port function.

Parameters:

Channel

GPIO channel. All channels are supported.

void GPIOFlushToEEPROM

(

void

)

All prior changed values are persistently written to EEPROM.

DWORD GPIOGetConnectedIP

(

void

)

Delivers the IP of a client who is connected to GPIO server.

Returns:

The IP address as 32 bit value, 0 if no client is connected.

WORD GPIOGetCurrentImpulseWidth

(

BYTE

Channel

)

Delivers the current value for an impulse channel.

Parameters:

Channel

GPIO channel. GPIO_03_ID and GPIO_09_ID are supported.

Returns:

The impulse value.

DWORD GPIOGetEdgeCounter

(

BYTE

Channel

)

Delivers the current edge counter value.

Parameters:

Channel

GPIO channel. Only GPIO_00_ID, GPIO_01_ID and GPIO_02_ID are supported.

Returns:

The current edge counter value. The low word contains the value. If the high word is not 0 than the counter is overrun or underrun. It depends on the counters configuration.

EdgeCounterMode_t GPIOGetEdgeCounterMode

(

BYTE

Channel

)

Delivers the current counter mode of the edge trigger for a given channel.

Parameters:

Channel

GPIO channel. Only GPIO_00_ID, GPIO_01_ID and GPIO_02_ID are supported.

Returns:

The configured edge counter mode.

EdgeFilterMode_t GPIOGetEdgeFilterMode

(

BYTE

Channel

)

Delivers the current filter mode of the edge trigger for a given channel.

Parameters:

Channel

GPIO channel. Only GPIO_00_ID, GPIO_01_ID and GPIO_02_ID are supported.

Returns:

The configured filter mode.

EdgeTriggerMode_t GPIOGetEdgeTriggerMode

(

BYTE

Channel

)

Delivers the current mode of the edge trigger for a given channel.

Parameters:

Channel

GPIO channel. Only GPIO_00_ID, GPIO_01_ID and GPIO_02_ID are supported.

Returns:

The configured mode.

EventMode_t GPIOGetEventMode

(

BYTE

Channel

)

Delivers the GPIO server event mode of a GPIO channel.

Parameters:

Channel

GPIO channel. All channels are supported.

Returns:

The mode of the requested channel.

BOOL GPIOGetImpulseLogic

(

BYTE

Channel

)

Delivers the configured logic for an impulse channel.

Parameters:

Channel

GPIO channel. GPIO_03_ID and GPIO_09_ID are supported.

Return values:

	TRUE	The impulse logic is '1'. Means that on full level the output is constantly '1'.
	FALSE	The impulse logic is '0'. Means that on full level the output is constantly '0'.

ImpulseMode_t GPIOGetImpulseMode

(

void

)

Delivers the configured mode for all impulse channel.

Returns:

The configured impulse mode.

TimerPrescaler_t GPIOGetImpulsePrescaler

(

void

)

Delivers the configured prescaler for all impulse channel.

Returns:

The prescaler value.

BOOL GPIOGetPinValue

(

BYTE

GPIOChannel

)

This function reads the state from a single IO pin.

This reading is indpendent from the configured direction of the pin.

Parameters:

GPIOChannel

Use one of the GPIO_XX_ID defines to select the IO pin.

ROM BYTE* GPIOGetPortName

(

BYTE

Channel

)

Delivers the port alias name for the given channel.

Parameters:

Channel

Channel of the requested name.

Returns:

ROM pointer to the name.

PortType_t GPIOGetPortType

(

BYTE

GPIOChannel

)

Delivers the current port configuration of a GPIO pin.

Parameters:

GPIOChannel

Channel to request.

Returns:

Configured port type.

PWMFrequencies_t GPIOGetPWMFrequency

(

void

)

Delivers the configured frequency for all pwm channel.

Returns:

The configured frequency.

BOOL GPIOGetPWMLogic

(

BYTE

Channel

)

Delivers the configured logic for a pwm channel.

Parameters:

Channel

GPIO channel. GPIO_03_ID and GPIO_09_ID are supported.

Return values:

	TRUE	The pwm logic is '1'. Means that on full level the output is constantly '1'.
	FALSE	The pwm logic is '0'. Means that on full level the output is constantly '0'.

WORD GPIOGetPWMStartDuty

(

BYTE

Channel

)

Delivers the configured startup value for a pwm channel.

Parameters:

Channel

GPIO channel. GPIO_03_ID and GPIO_09_ID are supported.

Returns:

The configured startup value.

GPIORadix_t GPIOGetRadix

(

void

)

Delivers the currently set radix for displaying values on the GPIO server and the web interface.

Returns:

The configured radix.

BYTE GPIOGetRefresh

(

void

)

Delivers the currently set refresh rate for auto refreshing the GPIO web interface.

Returns:

The currently configured refresh rate in seconds. 0 means off.

GPIOServerConnection_t GPIOGetServerState

(

void

)

This function delivers the current state of the GPIO server.

Returns:

The current state.

WORD GPIOGetStartImpulseWidth

(

BYTE

Channel

)

Delivers the configured startup value for an impulse channel.

Parameters:

Channel

GPIO channel. GPIO_03_ID and GPIO_09_ID are supported.

Returns:

The impulse startup value.

BOOL GPIOGetStartupValue

(

BYTE

Channel

)

Delivers the startup value for a given channel.

This startup value is only valid for ports configured as digital output.

Parameters:

Channel

GPIO channel. All channels are supported.

Return values:

	TRUE	Output is '1' on startup.
	FALSE	Output is '0' on startup.

WORD GPIOGetTCPPort

(

BOOL

bPersistent

)

Delivers the current configured TCP port of the GPIO server.

Parameters:

bPersistent

If TRUE the return value is read from EEPROM. If FALSE the value is taken from the current state.

Returns:

The port of the listening GPIO server.

void GPIOInit

(

SerialMode_t

Mode

)

Initializes the GPIO module in the requested mode.

Should be called once at startup (very early).

Parameters:

Mode

Specifies the serial mode for NetzerIO. GPIO module must know this because it configures some port pins also for the serial modes.

void GPIOInitPeripherals

(

void

)

Call this function before reconfiguring a single or multiple ports with GPIOConfigurePort.

The function disables timer and interrupts and initializes all periperals to a startup state.

BOOL GPIOInitTask

(

void

)

After initializing network and application stuff the application should call this function to prepare task members needed for proper GPIO task operation.

Return values:

	TRUE	Initialization was successful.
	FALSE	Initialization failed, try again later.

BOOL GPIOIsAuthActive

(

void

)

Delivers if authentication for the GPIO server is currently active.

If active a login prompt is printed on the server first and username and password must be entered before usage of the server.

Return values:

	TRUE	Authentication is enabled.
	FALSE	Authentication is disabled.

BOOL GPIOIsPortOverwritten

(

BYTE

GPIOChannel

)

Delivers if the port is currently overwritten by an alternative pin (i.e serial).

Parameters:

GPIOChannel

Channel to request.

Return values:

	TRUE	Channel is overwritten.
	FALSE	Channel is used as configured.

BOOL GPIOIsScriptActive

(

void

)

Delivers if javascript for the GPIO web interface is currently active.

Return values:

	TRUE	Javascript is enabled.
	FALSE	Javascript is disabled.

BOOL GPIOIsTypeSupportedByPort	(	BYTE	Channel,
		PortType_t	PortType
	)

Determines programmatically if a given port supports a requested configuration.

Parameters:

	Channel	GPIO channel. All channels are supported.
	PortType	Type which is requested for the given channel.

Return values:

	TRUE	Channel supports port type.
	FALSE	Channel does not support port type.

void GPIOReconfigurePeripherals

(

void

)

Call this function after reconfiguring a single or multiple ports with GPIOConfigurePort.

The function configures timer and enables interrupts as needed.

void GPIOResetEdgeCounter

(

BYTE

Channel

)

Thread safe reset the edge counter for the given channel.

Parameters:

Channel

Channel to reset. Only GPIO_00_ID, GPIO_01_ID and GPIO_02_ID support the edge counter.

BOOL GPIOServerIsActivated

(

void

)

Getter for activated GPIO server.

Return values:

	TRUE	The server is active in the current session.
	FALSE	The server is not active in the current session.

void GPIOSetAllPinValues

(

WORD

NewValue

)

Use this function to write to all pins at once.

Only ports which are configured as digital outputs are affected.

Parameters:

NewValue

All pin values in a port mask.

void GPIOSetCurrentImpulseWidth	(	BYTE	Channel,
		WORD	ImpulseWidth
	)

Sets the value for an impulse or pwm channel.

This value is not stored persistently. Use GPIOSetStartupImpulseWidth instead. For impulse channels the value must be at least 100. For pwm channels the maximum value is 1023. The function automatically adjust this values if exceeded.

Parameters:

	Channel	GPIO channel. GPIO_03_ID and GPIO_09_ID are supported.
	ImpulseWidth	New value.

void GPIOSetEdgeCounterMode	(	BYTE	Channel,
		EdgeCounterMode_t	Mode
	)

Configures a new edge counter mode for a given channel.

The new mode is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

	Channel	GPIO channel. Only GPIO_00_ID, GPIO_01_ID and GPIO_02_ID are supported.
	Mode	The new counter mode.

void GPIOSetEdgeFilterMode	(	BYTE	Channel,
		EdgeFilterMode_t	Mode
	)

Configures a new edge filter mode for a given channel.

The new mode is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

	Channel	GPIO channel. Only GPIO_00_ID, GPIO_01_ID and GPIO_02_ID are supported.
	Mode	The new filter mode.

void GPIOSetEdgeTriggerMode	(	BYTE	Channel,
		EdgeTriggerMode_t	Mode
	)

Configures a new edge trigger mode for a given channel.

The new mode is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

	Channel	GPIO channel. Only GPIO_00_ID, GPIO_01_ID and GPIO_02_ID are supported.
	Mode	The new mode.

void GPIOSetEventMode	(	BYTE	Channel,
		EventMode_t	Mode
	)

Sets the GPIO server event mode of a GPIO channel.

The new mode is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

	Channel	GPIO channel. All channels are supported.
	Mode	The new mode of the requested channel.

void GPIOSetImpulseLogic	(	BYTE	Channel,
		BOOL	Logic
	)

Configures the logic for an impulse channel.

The new logic is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

	Channel	GPIO channel. GPIO_03_ID and GPIO_09_ID are supported.
	Logic	TRUE means on full level the output is constantly '1'. FALSE means on full level the output is constantly '0'.

void GPIOSetImpulseMode

(

ImpulseMode_t

Mode

)

Sets a new mode for all impulse channel.

The new mode is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

Mode

The new impulse mode.

void GPIOSetImpulsePrescaler

(

TimerPrescaler_t

Prescaler

)

Configures the prescaler for all impulse channel.

The new prescaler value is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

Prescaler

New prescaler value.

void GPIOSetPortType	(	BYTE	Channel,
		PortType_t	PortType
	)

Sets the port mode of a GPIO channel.

The new port mode is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

	Channel	GPIO channel. All channels are supported.
	PortType	The new type of the requested channel.

void GPIOSetPortValue	(	BYTE	Channel,
		BOOL	Value
	)

This function sets the state for a single IO pin.

That is only valid if the pin is not overwritten by another function of i.e the serial server. Also the pin must be configured as digital output.

Parameters:

	Channel	Use one of the GPIO_XX_ID defines to select the IO pin.
	Value	TRUE means on, FALSE means off.

void GPIOSetPWMFrequency

(

PWMFrequencies_t

Value

)

Configures the frequency for all pwm channel.

The new frequency is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

Value

The new frequency.

void GPIOSetPWMLogic	(	BYTE	Channel,
		BOOL	Value
	)

Configures the logic for a pwm channel.

The new logic is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

	Channel	GPIO channel. GPIO_03_ID and GPIO_09_ID are supported.
	Value	TRUE means on full level the output is constantly '1'. FALSE means on full level the output is constantly '0'.

void GPIOSetPWMStartDuty	(	BYTE	Channel,
		WORD	Value
	)

Configures the startup value of a pwm channel.

The new value is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

	Channel	GPIO channel. GPIO_03_ID and GPIO_09_ID are supported.
	Value	The new startup value. Due the 10 bit width only values up to 1023 can be set. Higher values are automatically adjusted to 1023.

void GPIOSetRadix

(

GPIORadix_t

NewRadix

)

Sets a new radix for displaying values on the GPIO server and the web interface.

The new radix is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

NewRadix

The new radix.

void GPIOSetRefresh

(

BYTE

Refresh

)

Sets a new refresh rate for auto refreshing the GPIO web interface.

The new rate is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

Refresh

The new refresh rate in seconds. 0 disables refreshing.

void GPIOSetStartupImpulseWidth	(	BYTE	Channel,
		WORD	ImpulseWidth
	)

Configures the startup value for an impulse channel.

The new startup value is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage. The value must be at least 100. Else the function adjusts it to 100.

Parameters:

	Channel	GPIO channel. GPIO_03_ID and GPIO_09_ID are supported.
	ImpulseWidth	Impulse value on startup.

void GPIOSetStartupValue	(	BYTE	Channel,
		BOOL	Value
	)

Configures the startup value for binary output configured values.

The new startup value is not automatically stored in EEPROM. Call the function GPIOFlushToEEPROM for persistent storage.

Parameters:

	Channel	GPIO channel. All channels are supported.
	Value	TRUE means output is '1' on startup. FALSE means output is '0' on startup.

void GPIOSetTCPPortPersistent

(

WORD

Port

)

Configures a new TCP port for the GPIO server.

This value is stored persistent in EEPROM.

Parameters:

Port

The new port value.

void GPIOStopTask

(

void

)

On network errors or shut down events these function should be called by the main application to proper stop the GPIO tasks (i.e disconnecting a connected client).

void GPIOTask

(

void

)

Call this function periodically from main application to execute GPIO module tasks.
